Neuromodulators for Migraine At-a-Glance

Article

Here: A snapshot of the 4 FDA-approved neuromodulation devices and a primer on neuromodulation for migraine at work.

Neuromodulation is defined by the International Neuromodulation Society as the alteration of nerve activity through targeted delivery of a stimulus, such as electrical stimulation or chemical agents, to specific neurologic sites in the body.

Neuromodulation has become an effective, drug-free, and FDA-approved strategy for the management of migraine and other primary headaches. In fact, the FDA has labeled each of the 4 currently approved devices as “minimal risk,” ie, there are no significant side effects known or expected.

Commonly referred to as “stimulation” devices or “stimulators,” the designation isn’t fully accurate as the effect of neuromodulation is often to tamp down brain activity rather than to stimulate.

In brief, the 4 devices now available are:Cefaly is a transcutaneous subraorbital nerve stimulation (tSNS) device that was FDA approved in 2014 for prevention of migraine, and later shown to be effective for acute treatment as well. The device is magnetically connected to a self-adhesive electrode palced on the forhead.

The Spring TMS (transcranial magnetic stimulation) device (by eNeura) is held against the back of the head so it cradles the back of the skull; when triggered, it delivers a brief pulse of electromagnetic energy through the skull.

gammaCore (by Electrocore) is a non-invasive vagus nerve stimulator (VNS). The handheld device is placed on the neck over the area of teh vagus nerve and controlled by the patient. It is approved for acute treatment of episodic cluster headache as well as migraine.

Nerivio Migra (Theranica) is a novel, smartphone-controlled neuromodulation device that is worn on the upper arm and blocks acute migraine pain via conditioned pain modulation. It is approved for acute treatment of migraine with or without aura in adult patients who do not have chronic migraine.

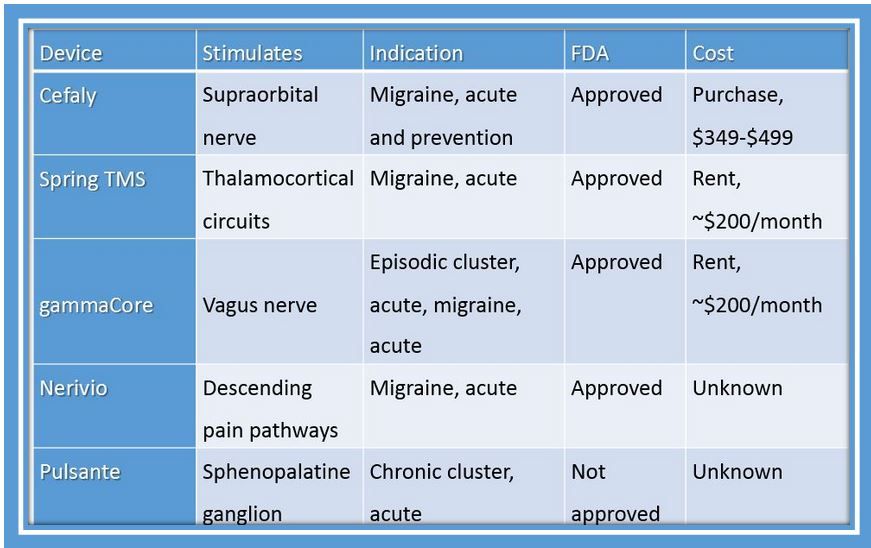

The Table below highlights features of each device and is followed by a brief overview and illustration of neuromodulation at work.

Neuromodulation, migraine, aura, headache
Neuromodulation, migraine, aura, headache

<br/>

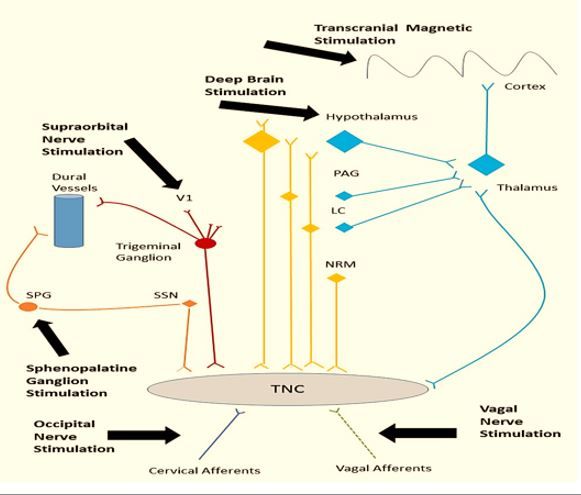

Neuromodulation at work. Envision the following pain pathway: sensory pain fibers in the meninges, the face, jaw and sinuses, as well as upper cervical sensory afferents all synapse in the trigeminal nucleus caudalis (TNC) in the brainstem.

Second order neurons then ascend and hit the thalamus (as well as a few other structures like the periaqueductal gray [PAG]), and third order nerves climb yet again to the cortex, where pain is fully processed.

So, starting from the top, transcranial magnetic stimulation (TMS; Spring TMS) affects the cortex and thalamocortical circuits, while deep brain stimulation stimulates the PAG.

Supraorbital nerve stimulation (tSNS (Cefaly) modulates facial pain signals into the TNC.

Curled deep behind the nose, the sphenopalatine ganglion (SPG) is a pain superhighway into the TNC, which can be stimulated.

The occipital nerves take posterior cervical sensory information into the TNC, and the vagus nerve, as it courses through the anterior neck, synapses on the TNC and other pain depots such as spinal trigeminal nucleus, nucleus ambiguous, and the nucleus of the solitary tract.
